Jeep Mirror Swap

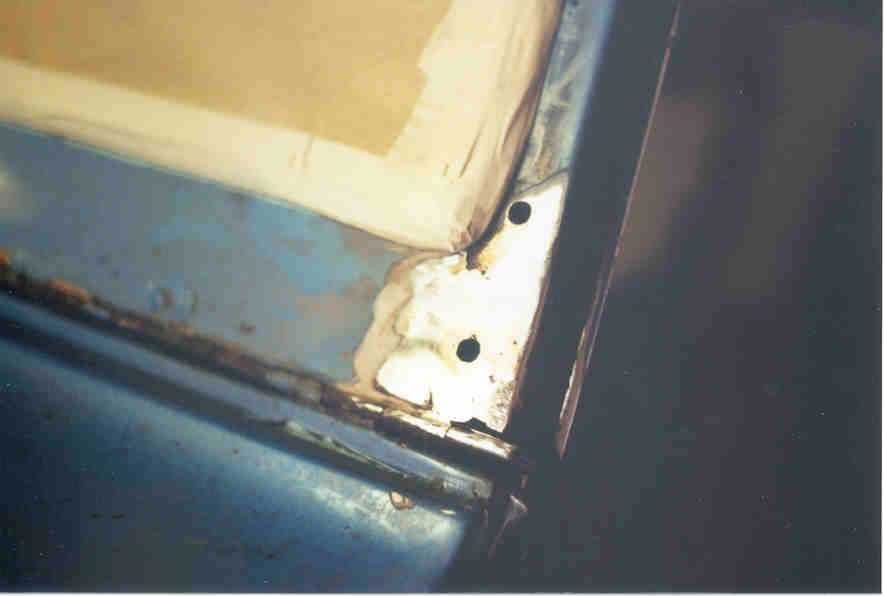

This is showing location of mounting holes drilled in
windshield mast. 5/16 holes drilled.

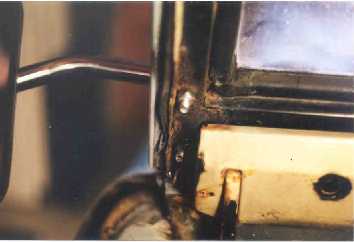

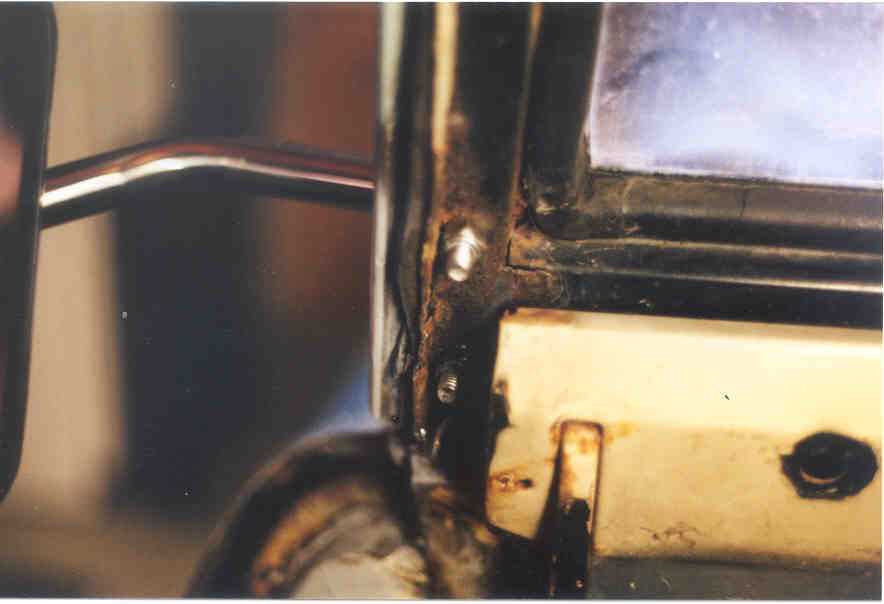

This shows location of bolts to the inside view. Note the close tolerance
and you have to make sure electric wiper harness is not in the way.

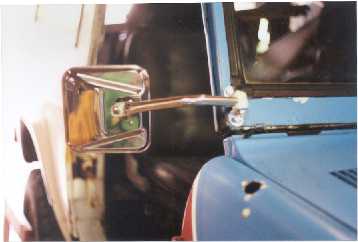

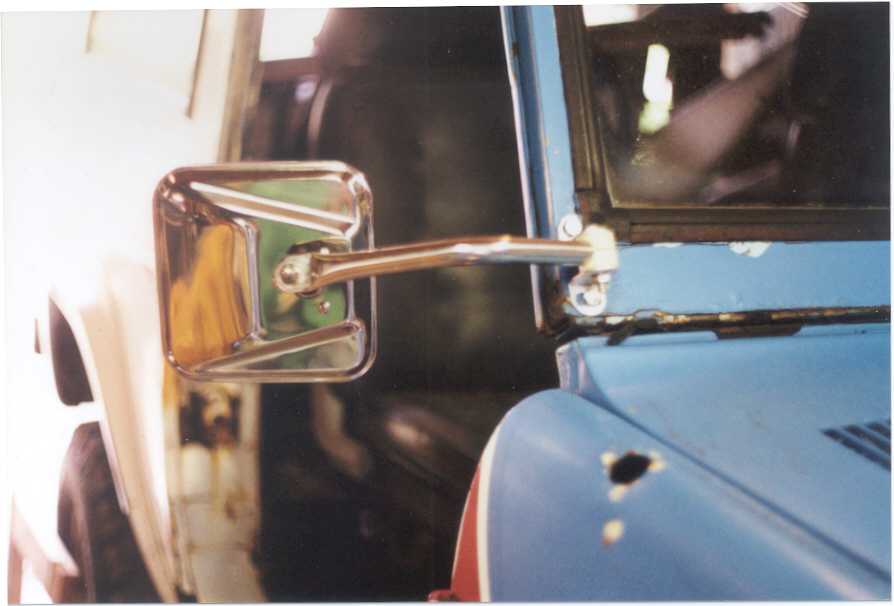

This view is of right side. First adjustment didn't give
me the height of door clearance I was looking for.
By slightly twisting the arm with an adjustable wrench and
aligning the head in a different angle I was able to attain
the visibility I needed on right side.

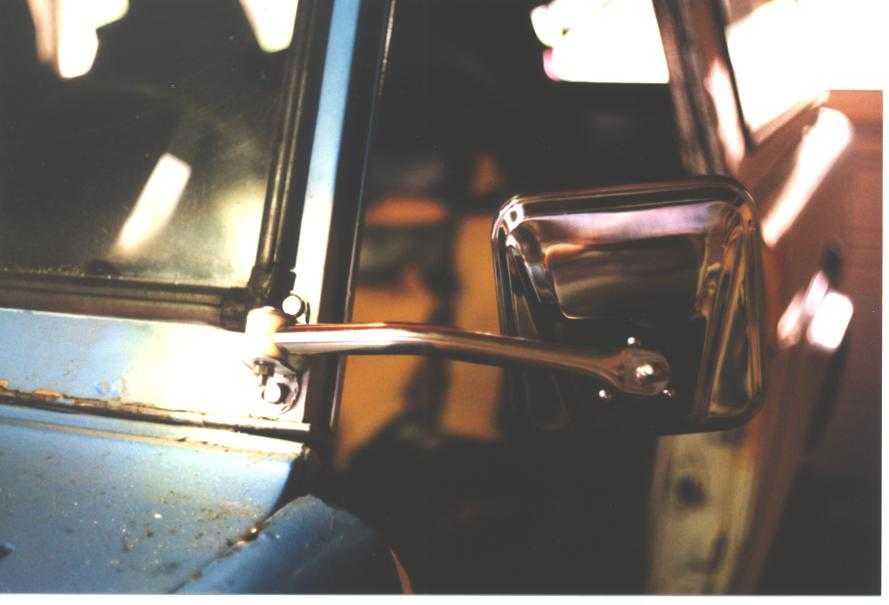

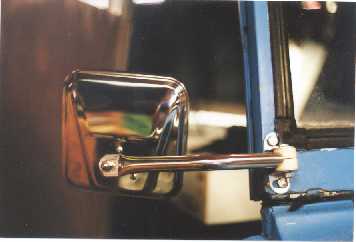

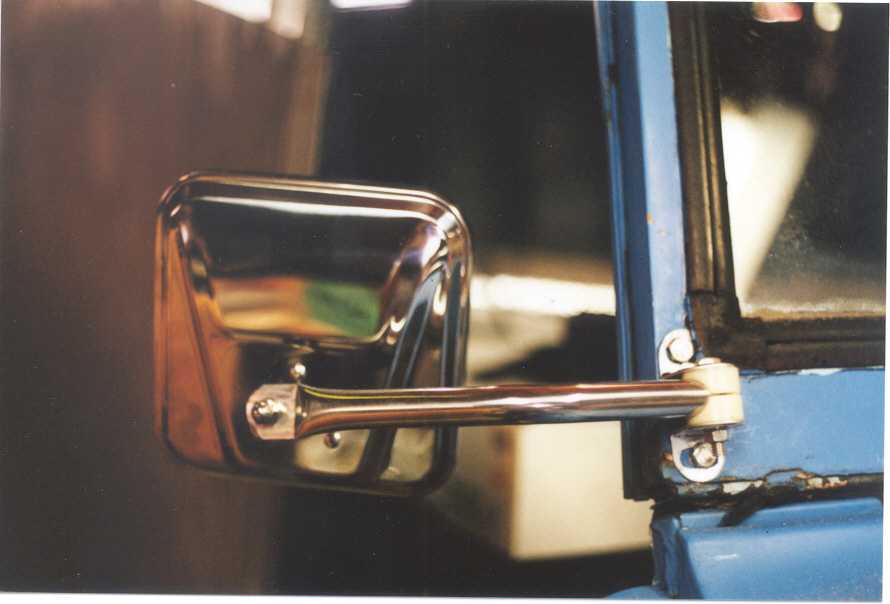

Drivers side was a lot easier to adjust a slight tweaking of the arm and
proper placement of the head and good visibility was accomplished.
Note the one thing that had to be done was holes in arms had to be redrilled.
I accomplished this by having someone sit in the drivers seat while I marked
with black marking pen and drilled on drill press.
I used 5/16x2-1/2 bolts with washers and nyloc nuts.
The mirror kits were bought from Sears Automotive catalog for 39.95 for
